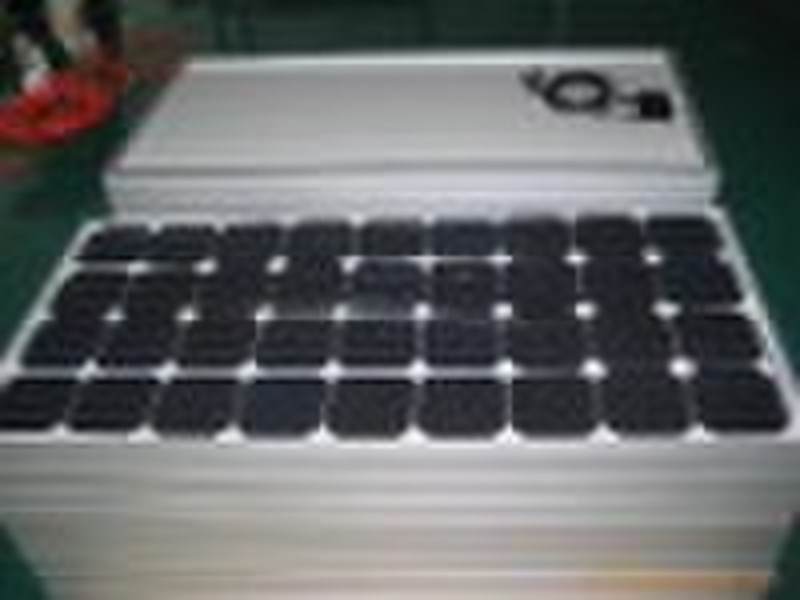

New energy, 60W Mono high-efficiency solar panels
original price: 98,00 USD
jianrong gong
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | HZ |
| Model Number | HZ60W-36M |
1.Solar panel structure 2.Glass 3. Junction Box 4.Package 5.The characteristics of solar panels Mono Solar Panels 125(60W-95W) 36pcs Characteristics Modol60W-36M70W-36M80W-36M90W-36M95W-36MOpen circuit voltage(Voc)21.6V21.6V21.6V22.3V22.3VOptimum operating voltage(Vmp)17.2V17.2V17.6V18.7V18.8VShort circuit current(Isc)4.74A4.91A4.95A5.36A5.6AOpptimum operating current(Imp)3.52A4.11A4.55A4.81A5.05AMaximum power at STC(Pm)60W70W80W90W95W Cell Monocrystalline silicon solar cells 125*125mm No of cells and connections 36(4*9) Dimension of module(mm) 1200*540*30 Weight 8KG Operating temperature -40 to +85°C Maximum system voltage 1000V DC NOCT 45°C±2°C Current temperature coefficient %/K 0.06±0.01 Voltage temperature coefficient Mv/K -(155±10) Power temperature coefficient %/K -(0.5±0.05) Type of output terminal Junction box Cable (4.0mm2)LAPP Symmetrical length 900mm Connection Type IV
Delivery terms and packaging
Packaging Detail: Carton Packaging Delivery Detail: 15-25 days after payment
Port: ShangHai
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
